Compact Pressurized Solar Water Heater

Stable water pressure, high efficiency, fewer heat pipe used, independence

Product Introduction

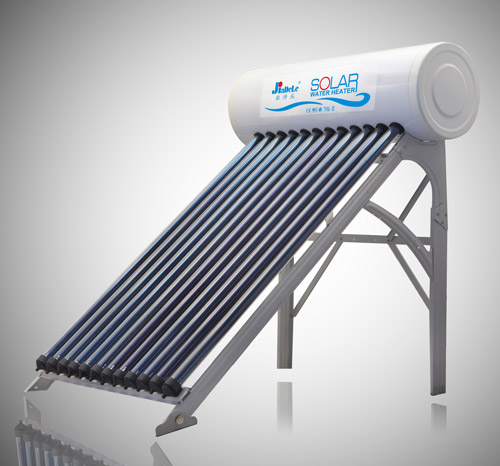

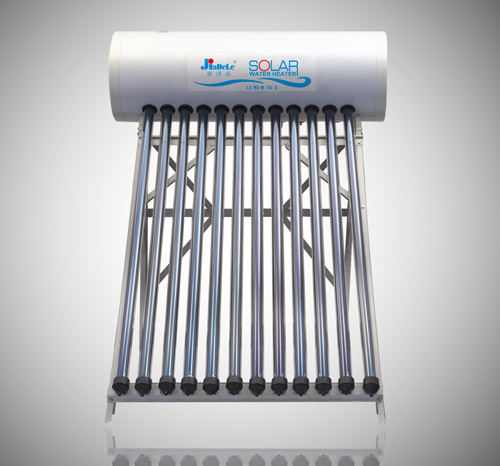

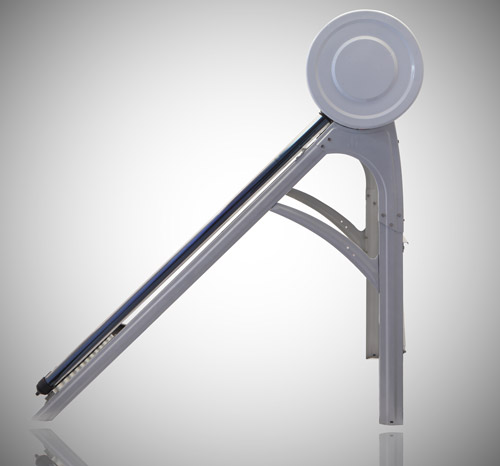

Compact Pressurized Solar Water Heater

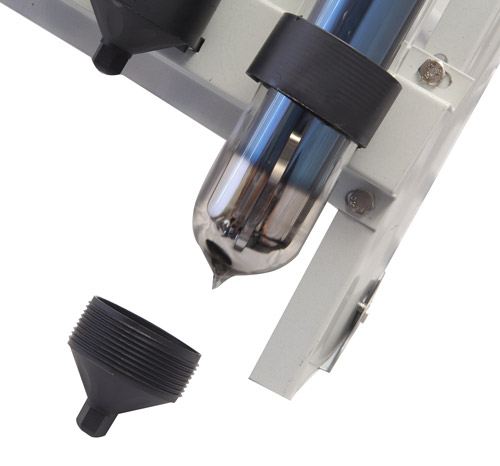

This product the tube distance is 90mm ( commonly 75mm) and with heat pipe, take 150L capacity for example, the vacuum tubes are 13 pcs while common one needs 15 pcs. this model is suitable for the area with longer sunshine time. It adopts adjustable tube holders, easy to assemble and easy to maintain. The pressurized design can make you a happier shower.

Technical parameter

Model

Vacuum tube

Outer tank

Inner tank

Frame

Tube qty

Angle

Outer tank dia.

L x w x h

Frame length（mm)

Frame width(mm)

Tank capacity (L)

Absorber area(m²)

Q-B-J-1-150/2.2/0.05

Φ58*1800

Galvanized steel, thickness0.35mm

SUS304 stainless steel, thickness 1.2mm

Galvanized steel, thickness 1.5mm

45°

Φ470

1460*1620*1690

1620

1200

150

1.56

Q-B-J-1-200/2.45/0.05

Φ58*1800

45°

Φ470

1860*1620*1690

1620

1640

200

2.2

Q-B-J-1-250/2.94/0.05

Φ58*1800

45°

Φ470

2260*1620*1690

1620

2000

250

2.65

Q-B-J-1-300/3.68/0.05

Φ58*1800

45°

Φ470

2660*1620*1690

1620

2450

300

3.24
