Product Presentation

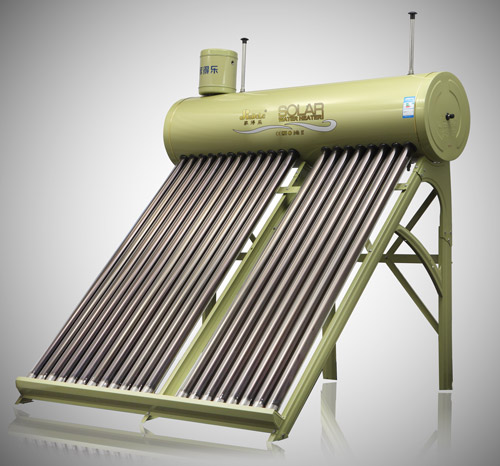

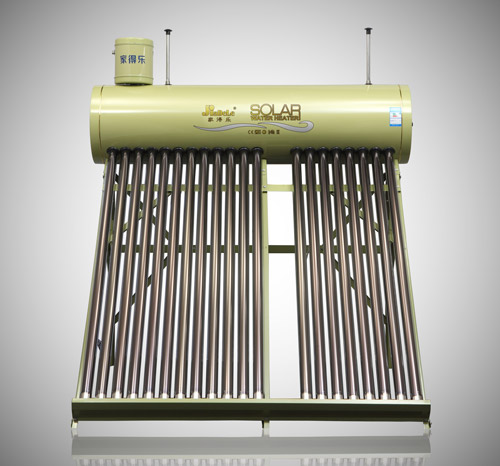

2-in-1 Solar Water Heater

Convenient, save money, reliable, fast temp rise, hot and cold water don t mix, improve the hot water usage, not hot and cold water

Product Introduction

2-in-1 Solar Water Heater

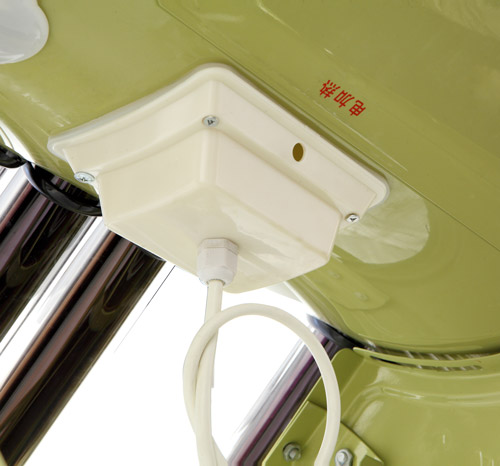

Based on the optimization of the smart dicaryon solar water heater, it adds one 5L assistant tank to avoid failed feeding water because of controller sensor not working. Jiadele 2-in-1 solar water heater= 1 set of general solar water heater+ 1 set of electric water heater. This type of solar water heater designed in two independent inner tanks, it is the State Department of proprietary products

Technical parameter

Key Specification

Overview dimension

Installation dimension

Model

Vacuum tube

Outer tank

Inner tank

Frame

Tube qty

Angle

Outer tank dia.

L x w x h

Frame length（mm)

Frame width(mm)

Tank capacity (L)

Absorber area(m²)

Q-B-J-165/2.45/0.05

Φ58*1800

Jiadele galvanized steel

Φ360 Food Grade SUS304-2B stainless steel

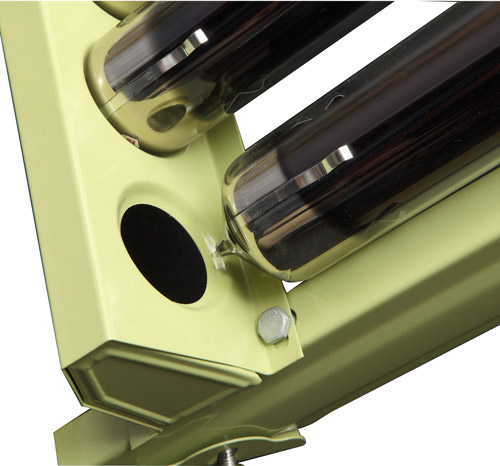

Galvanized sheet with electrostatic plastic coating, anti-corrosion,tail support without tube holder

45°

Φ460

1680*1550*1680

1470

1680

165

2.45

Q-B-J-195/2.94/0.05

Φ58*1800

45°

Φ460

1820*1550*1680

1470

1980

195

2.94

Q-B-J-241/3.68/0.05

Φ58*1800

45°

Φ460

2570*1550*1680

1470

2430

241

3.68
