Long lifespan, recycling, convenient installation, more aesthetically pleasing
Product Introduction

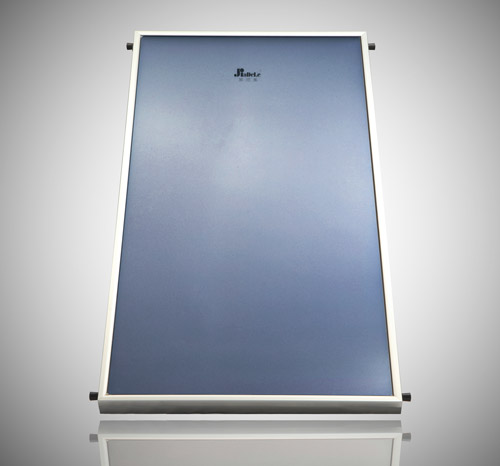

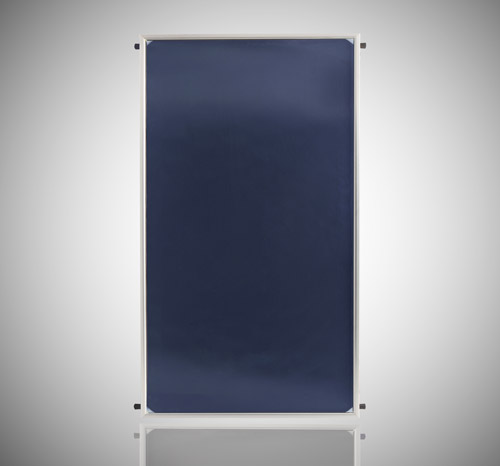

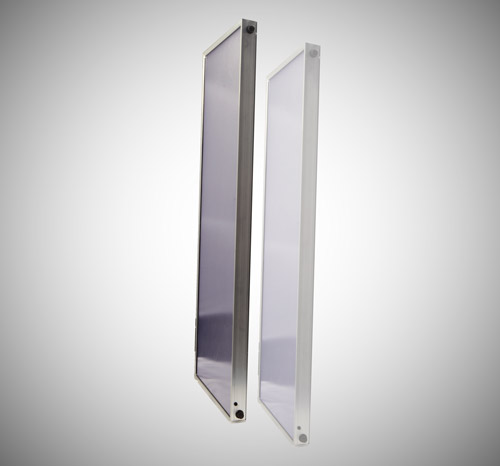

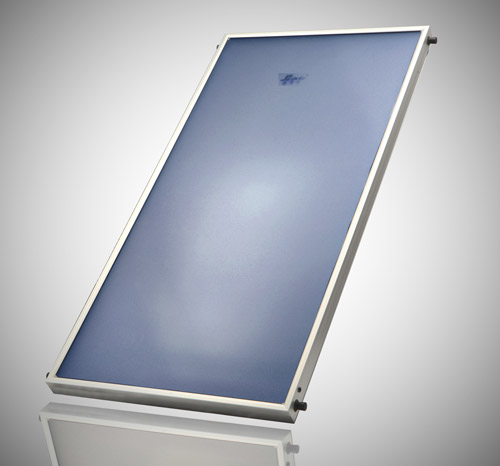

Flat Plate Solar Colletcor
Module design, arbitrary combination, harmony with the building perfectly.It advoids many problems such as maintenance headaches which results from collector,tubes and badly broken damaged by hailstone or frozen. To increase capacity just need to connect,collector at the reserved outlet.
Technical parameter
Model | JDL-PG/0.6-T/L-LM-2.0 |
Construction type | Flat- plate collector |
Dimensions | 2000×1000×80 |
Gross area | 2m² |
Absorber area | 1.84m² |
Weight | 37kg |
Glass energy transmission | 92% |
Glass sealing | EPDM |
Frame material | Aluminium |
Rear plate | AL sheet 0.4mm/ 0.4mm |
Back insulation | Rock wool 50mm thick |
Conversion factor | 76.70% |
Heat transfer coefficient a1 | 4.09W/ m²·k |
Heat transfer coefficient a2 | 0.009W/ m²·k |
Stagnation Temperature | 156.04℃ |
Snow load | Max 800kg/ m² |
Tilt angle | Minimum15º-maximum90º |
Board core Data | |
Single aluminium shet, 0.4 mm thick, laser weld,0.4mm, | |
Harp grid design per Tichelmann | |
Header tubes Cu 22x0.6 mm | |
7Parallel harp grid tubes, Cu 8x0.5 mm | |
Coating | Blue selective coating/Selective black chrome/Selective anodized |
Absorption | 95% |
Emissivity | 5% |
Connections | 3/4” |
Fluid volume | 1.8L |
Recom. heat transfer fluid | 40%(propylene glycol) |
Recom. flow rate | 15-150kg/h·m² |
Max. operating pressure | 6bar |
