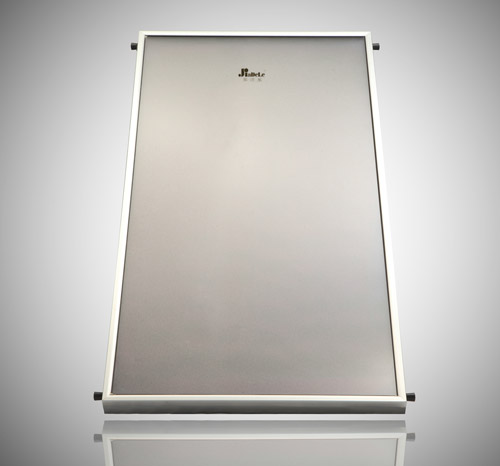

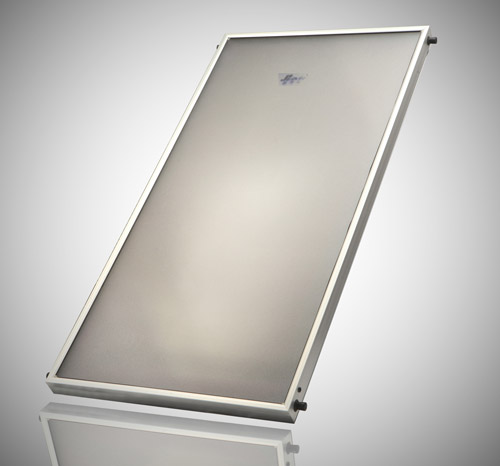

Flat Plate Solar Colletcor

Long lifespan, recycling, convenient installation, more aesthetically pleasing

Product Introduction

Flat Plate Solar Colletcor

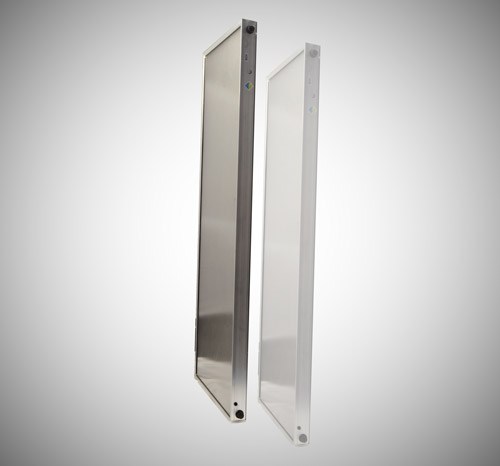

Module design, arbitrary combination, harmony with the building perfectly.It advoids many problems such as maintenance headaches which results from collector,tubes and badly broken damaged by hailstone or frozen. To increase capacity just need to connect,collector at the reserved outlet.

Technical parameter

Model	JDL-PG/0.6-T/L-LM-2.0
Construction type	Flat- plate collector
Dimensions	2000×1000×80
Gross area	2m²
Absorber area	1.84m²
Weight	37kg
Glass energy transmission	92%
Glass sealing	EPDM
Frame material	Aluminium
Rear plate	AL sheet 0.4mm/ 0.4mm
Back insulation	Rock wool 50mm thick
Conversion factor	76.70%
Heat transfer coefficient a	4.09W/ m²·k
Heat transfer coefficient a2	0.009W/ m²·k
Stagnation Temperature	156.04℃
Snow load	Max 800kg/ m²
Tilt angle	Minimum15º-maximum90º
Board core Data
Single aluminium shet, 0.4 mm thick, laser weld,0.4mm,
Harp grid design per Tichelmann
Header tubes Cu 22x0.6 mm
7Parallel harp grid tubes, Cu 8x0.5 mm

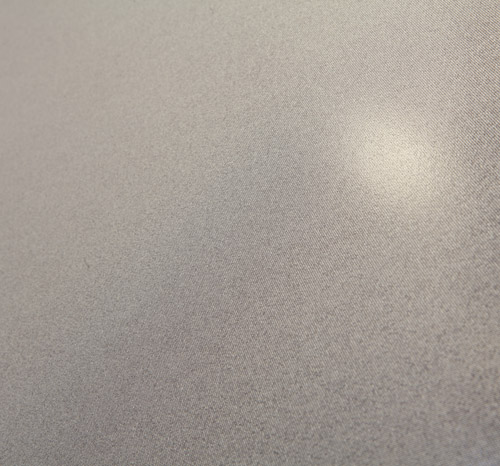

Coating	Blue selective coating/Selective black chrome/Selective anodized
Absorption	95%
Emissivity	5%
Connections	3/4”
Fluid volume	1.8L
Recom. heat transfer fluid	40%(propylene glycol)
Recom. flow rate	15-150kg/h·m²
Max. operating pressure	6bar
