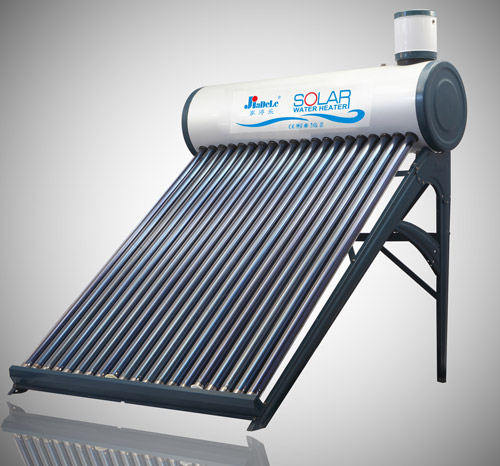

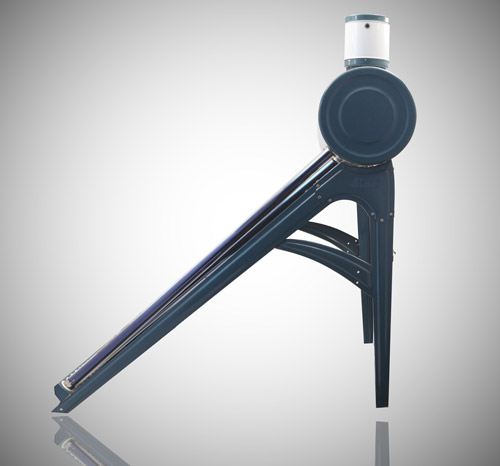

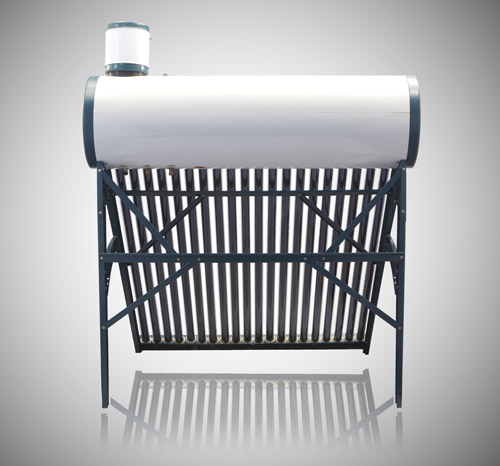

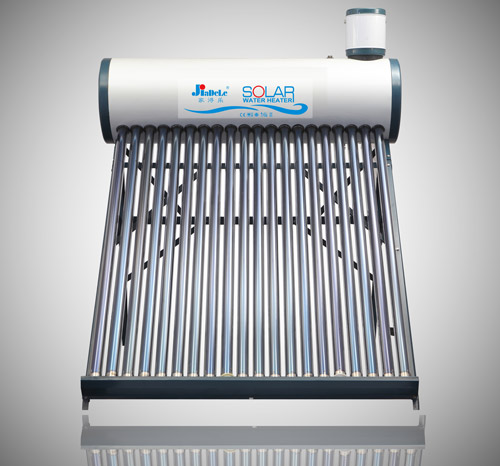

Copper Coil Solar Water Heater

Clean,high conversion efficiency,large volume assistant tank is more reliable

Product Introduction

Copper Coil Solar Water Heater

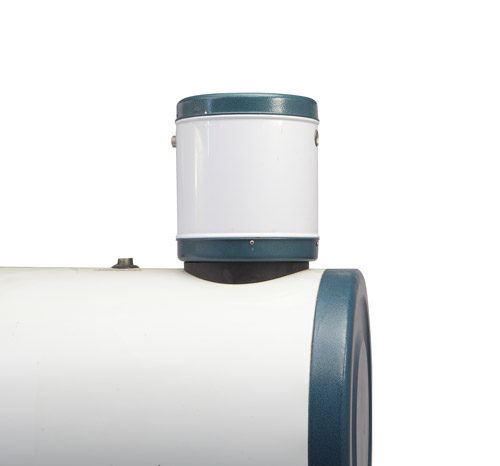

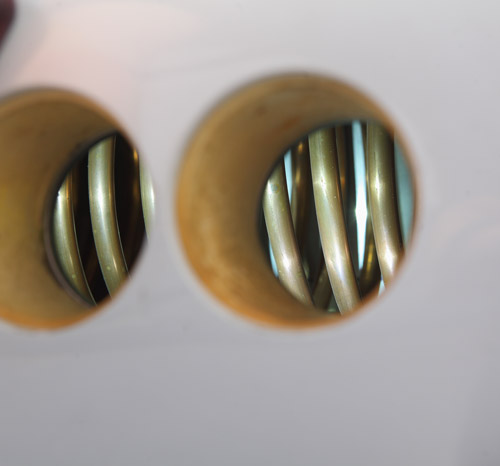

Tank with 40 meters of copper coil pipe,tap water through the copper coil in the tank has absorped sufficient heat of the direct heating,effectively avoid the secondary pollution of water,the product applicable to high water quality.This model wth 10L assistant tank can be automatically added to the evaporation of water in the tank.

Technical parameter

Model

Vacuum tube

Outer tank

Inner tank

Frame

Tube qty

Angle

Outer tank dia.

L x w x h

Frame length（mm)

Frame width(mm)

Tank capacity (L)

Absorber area(m²)

JDL-CC20-58/1.8

Φ58*1800

φ360 0.5mm (Stainless Steel thickness)

φ480 0.35mm (Galvanized Steel Thickness)

1.5mm (Galvanized Steel Thickness)

45°

480

1650*1640*1680

1640

1520

152

2.45

JDL-CC24-58/1.8

Φ58*1800

45°

480

1950*1640*1680

1640

1820

182

2.94

JDL-CC30-58/1.8

Φ58*1800

45°

480

2400*1640*1680

1640

2270

230

3.68

Copper Coil Pipe：Diameterφ12mm Thickness 1.0mm Length 40m
