High integration,flexible installation and perfect combination with the building
Product Introduction

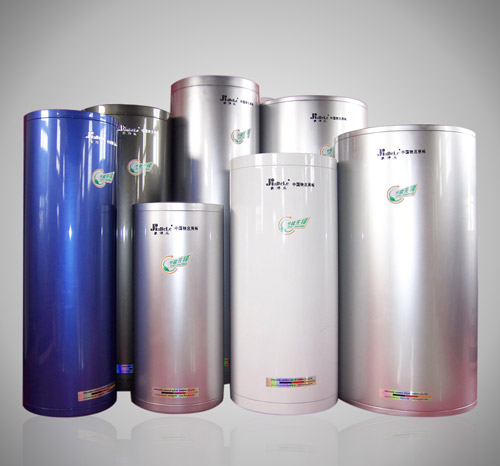

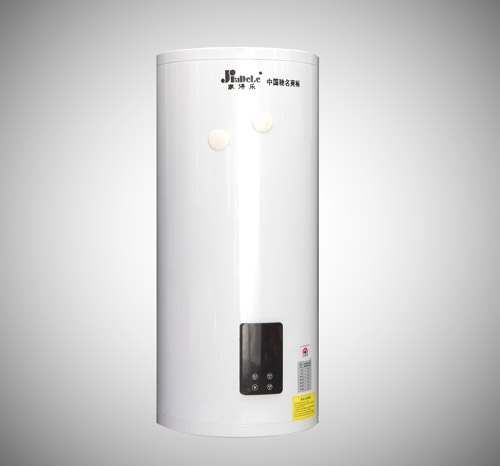

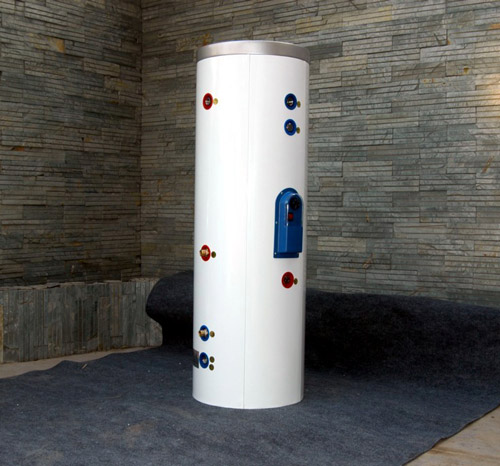

Split Pressurized Solar Water Heater

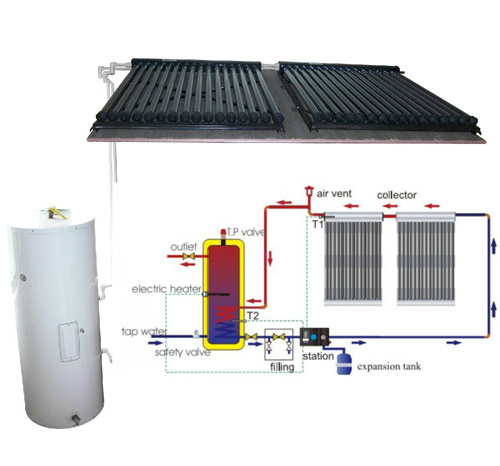

Worked with high pressure. Pump is used to circulate the heat.Strong water flow meets the demand of taking a massage shower.The heater collector and the water tank is separated that makes the system can combine with bay window, limitation of traditional installation methods. Balcony and building perfectly, which breaks the limitation of traditional installation.The heater collector can use flat panel or pressurized solar collector.
Technical parameter
Type | Tank specification | Out Tank Diameter *height | Inner Tank diameter | Inner Tank Material | Heat Exchange Area |
JDL-100 One Coil | 100L | Φ480×1000 | Φ380 | SUS304×δ1.2mm/SUS316×δ1.2mm | 0.4 m² |
JDL-150 One Coil | 150L | Φ480×1450 | Φ380 | SUS304×δ1.2mm/SUS316×δ1.2mm | 0.55 m² |
JDL-200 One Coil | 200L | Φ570×1270 | Φ480 | SUS304×δ1.2mm/SUS316×δ1.2mm | 0.75 m² |
JDL-250 One Coil | 250L | Φ570×1520 | Φ480 | SUS304×δ1.2mm/SUS316×δ1.2mm | 0.93 m² |
JDL-300 One Coil | 300L | Φ570×1800 | Φ480 | SUS304×δ1.2mm/SUS316×δ1.2mm | 1.1 m² |
JDL-400 One Coil | 400L | Φ700×1600 | Φ580 | SUS304×δ1.5mm/SUS316×δ1.5mm | 1.2 m² |
JDL-500 One Coil | 500L | Φ700×2000 | Φ580 | SUS304×δ1.5mm/SUS316×δ1.5mm | 1.48 m² |
JDL-150 Two Coil | 150L | Φ480×1450 | Φ380 | SUS304×δ1.2mm/SUS316×δ1.2mm | 0.35m²/0.5m² |
JDL-200 Two Coil | 200L | Φ570×1270 | Φ480 | SUS304×δ1.2mm/SUS316×δ1.2mm | 0.4m²/0.7m² |
JDL-250 Two Coil | 250L | Φ570×1520 | Φ480 | SUS304×δ1.2mm/SUS316×δ1.2mm | 0.55m²/0.88m² |
JDL-300 Two Coil | 300L | Φ570×1800 | Φ480 | SUS304×δ1.2mm/SUS316×δ1.2mm | 0.6m²/0.95m² |
JDL-400 Two Coil | 400L | Φ700×1600 | Φ580 | SUS304×δ1.5mm/SUS316×δ1.5mm | 0.7m²/1.1m² |
JDL-500 Two Coil | 500L | Φ700×2000 | Φ580 | SUS304×δ1.5mm/SUS316×δ1.5mm | 0.8 m²/1.4m² |
Split Pressurized Solar Water Heater
