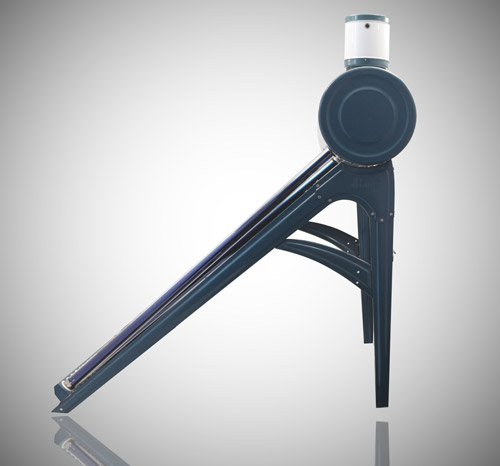

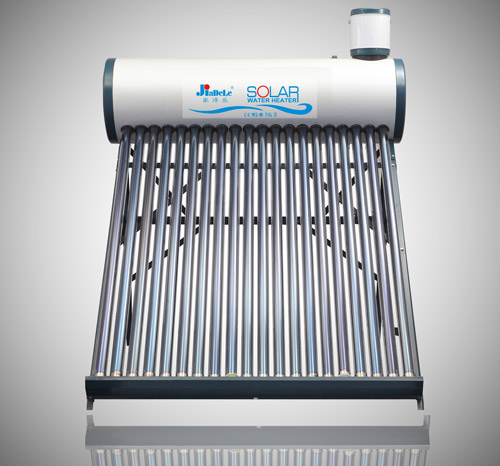

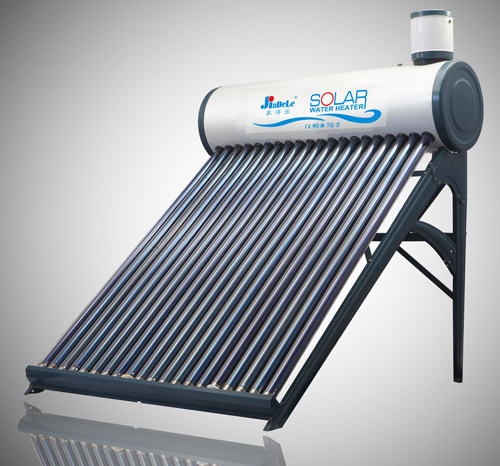

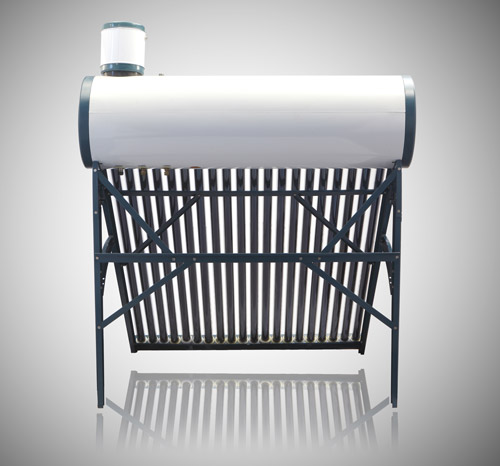

Manually Filling Water Solar Water Heater

The water injection is flexible, the mechanization degree is high, more convenient to use

Product Introduction

Manually Filling Water Solar Water Heater

Choose aluminum alloy frame,and install 5 Liter assistant tank at the top of the tank,can automatically add the water,without the trouble of manual fill the water,which is the best choice for pressure instability and constantly cut-off the water,the tank body reserve the electric heater.Users can install it by their demands.

Technical parameter

Model	Vacuum tube	Outer tank	Inner tank	Frame	Tube qty	Angle	Outer tank dia.	L x w x h	Frame length（mm)	Frame width(mm)	Tank capacity (L)	Absorber area(m²)
Q-B-J-1-128/1.96/0.05	Φ58*1800	Φ460 (Jiadele silver galvanized steel)	SUS304-2B (Food Grade Stainless Steel)	(Aluminum Alloy)	16	45°	Φ460	135015501680	1470	1220	128	1.96
Q-B-J-1-138/1.96/0.05					18	45°	Φ460	150015501680	1470	1370	138	2.2
Q-B-J-1-152/1.96/0.05					20	45°	Φ460	165015501680	1470	1520	152	2.45
Q-B-J-1-182/1.96/0.05					24	45°	Φ460	195015501680	1470	1820	182	2.94
Q-B-J-1-230/1.96/0.05					30	45°	Φ460	240015501680	1470	2270	230	3.68
Q-B-J-1-275/1.96/0.05					36	45°	Φ460	285015501680	1470	2720	275	4.43
