Product Presentation

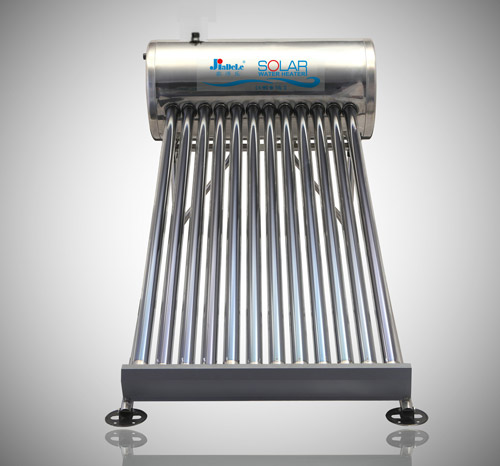

Simple Installation Stainless Steel Solar Water Heater

Good design,endurable,easily and fast installed,reduced the quantity of fixed bolts and nuts

Product Introduction

Simple Installation Stainless Steel Solar Water Heater

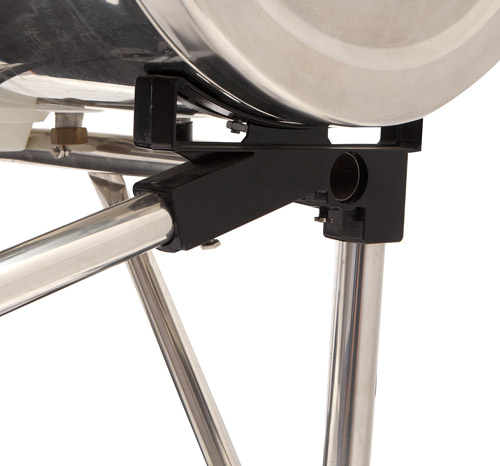

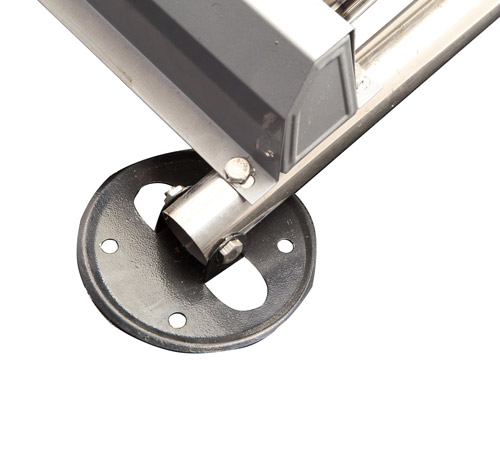

Change the normal way of frame for solar water heater,instead by casing form,the angle of it is designed to 18°,this module has obtained national patent technology,which use the one-time shaped square tube and round tube as superior material,it compared to the conventional frame by bolt and nuts connect,this model will be more endurable.

Technical parameter

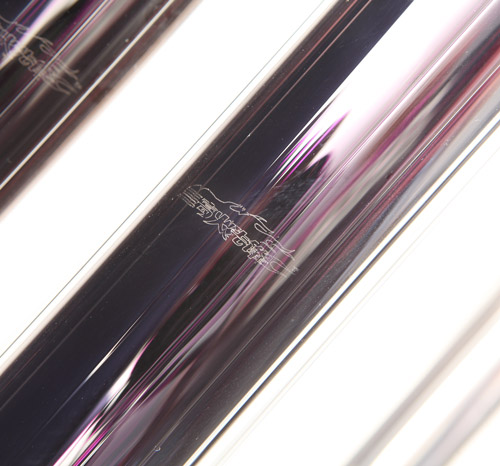

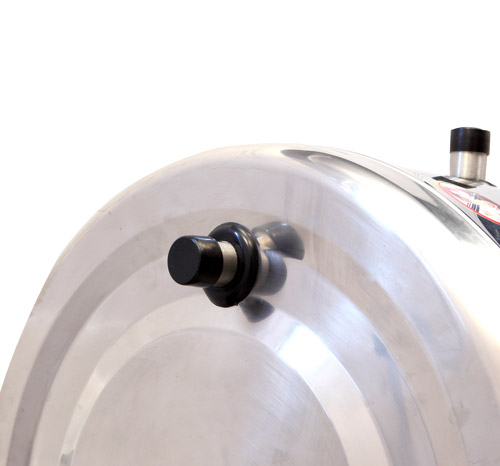

Model	Vacuum tube	Outer tank	Inner tank	Frame	Tube qty	Angle	Outer tank dia.	L x w x h	Frame length（mm)	Frame width(mm)	Tank capacity (L)	Absorber area(m²)
JDL-15-58/1.8	Φ58*1800	Φ460mm SUS201 (Stainles Steel)	SUS304-0.5 (Stainless Steel) Φ360mm	SUS201-0.8 (Stainless Steel) (National Patent)	15	18°	Φ460	135019501050	1950	1220	125	1.95
JDL-18-58/1.8					18	18°	Φ460	159019501050	1950	1460	150	2.34
JDL-20-58/1.8					20	18°	Φ460	175019501050	1950	1620	165	2.6
JDL-24-58/1.8					24	18°	Φ460	207019501050	1950	1940	200	3.13
JDL-30-58/1.8					30	18°	Φ460	255019501050	1950	2420	250	3.92
