Good design,endurable,easily and fast installed,reduced the quantity of fixed bolts and nuts
Product Introduction

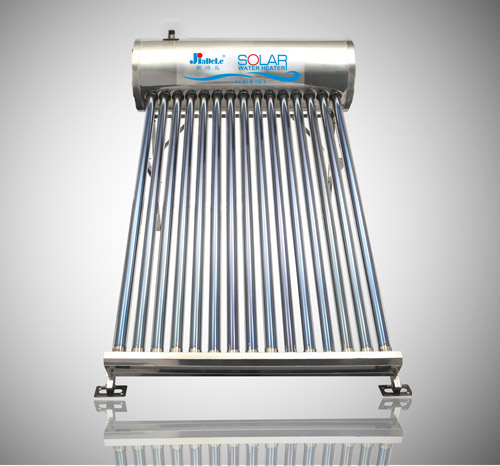

Simple Installation Stainless Steel Solar Water Heater

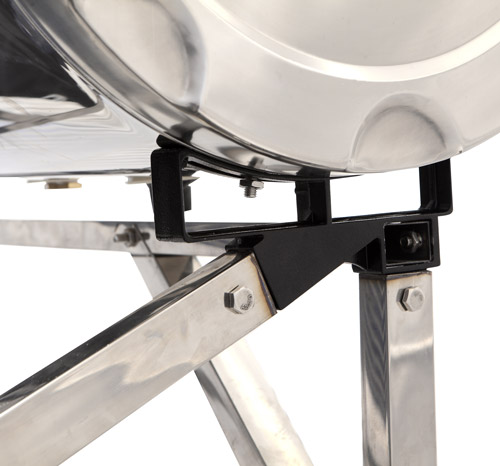

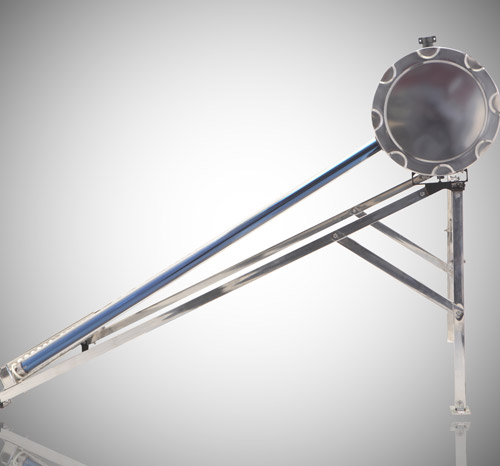

Change the normal way of frame for solar water heater,instead by casing form,the angle of it is designed to 18°,this module has obtained national patent technology,which use the one-time shaped square tube and round tube as superior material,it compared to the conventional frame by bolt and nuts connect,this model will be more endurable.
Technical parameter
Model | Vacuum tube | Outer tank | Inner tank | Frame | Tube qty | Angle | Outer tank dia. | L x w x h | Frame length(mm) | Frame width(mm) | Tank capacity (L) | Absorber area(m2) |
JDL-15-58/1.8 | Φ58*1800 | Φ460mm SUS201 (Stainles Steel) | SUS304-0.5 (Stainless Steel) Φ360mm | SUS201-0.8 (Stainless Steel) (National Patent) | 15 | 18° | Φ460 | 1350*1950*1050 | 1950 | 1220 | 125 | 1.95 |
JDL-18-58/1.8 | 18 | 18° | Φ460 | 1590*1950*1050 | 1950 | 1460 | 150 | 2.34 | ||||
JDL-20-58/1.8 | 20 | 18° | Φ460 | 1750*1950*1050 | 1950 | 1620 | 165 | 2.6 | ||||
JDL-24-58/1.8 | 24 | 18° | Φ460 | 2070*1950*1050 | 1950 | 1940 | 200 | 3.13 | ||||
JDL-30-58/1.8 | 30 | 18° | Φ460 | 2550*1950*1050 | 1950 | 2420 | 250 | 3.92 |
Simple Installation Stainless Steel Solar Water Heater
