High heat energy, high thermal insulation, high service life, corrosion resistance, high heat efficiency, option of controller to manage water temp and water level, or mechanical feed water, high automatic production, durable of argon arc welding
Product Introduction

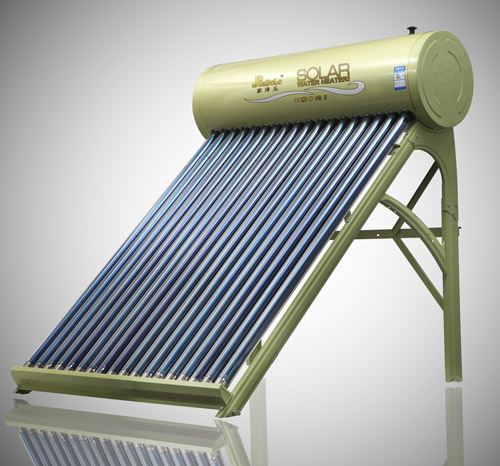

Tri-Fire Pioneer Solar Water Heater
This type of solar water heater is most widely used, now in terminal sales market share of around 80%. Jiadele had upgraded this product 3 times through years of production experience, and the feedback from the market verified the product longer service life, easier installation after upgrades. Depending on the situation in different regions, the tank divided into 2 different sizes: 460mm and 480mm.
Technical parameter
Model | Vacuum tube | Outer tank | Inner tank | Frame | Tube qty | Angle | Outer tank dia. | L x w x h | Frame length(mm) | Frame width(mm) | Tank capacity (L) | Absorber area(m2) |

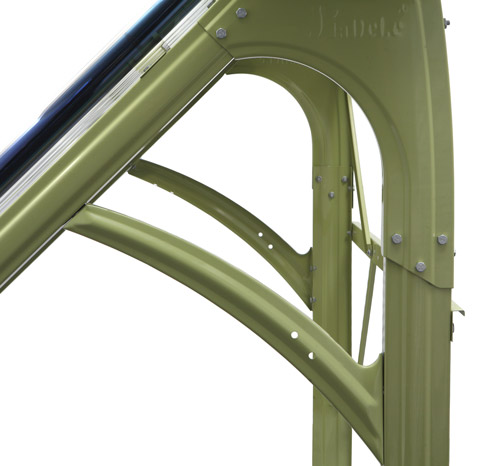

Q-B-J-1-128/1.96/0.05 | Φ58*1800 | Jiadele galvanized steel | Φ360 Food Grade SUS304-2B stainless steel | Galvanized sheet with electrostatic plastic coating, anti-corrosion,tail support without tube holder | 16 | 45° | Φ460 | 1350*1550*1680 | 1470 | 1220 | 128 | 1.96 |
Q-B-J-1-138/2.2/0.05 | Φ58*1800 | 18 | 45° | Φ460 | 1500*1550*1680 | 1470 | 1370 | 138 | 2.2 | |||
Q-B-J-1-152/2.45/0.05 | Φ58*1800 | 20 | 45° | Φ460 | 1650*1550*1680 | 1470 | 1520 | 152 | 2.45 | |||
Q-B-J-1-182/2.94/0.05 | Φ58*1800 | 24 | 45° | Φ460 | 1950*1550*1680 | 1470 | 1820 | 182 | 2.94 | |||
Q-B-J-1-230/3.68/0.05 | Φ58*1800 | 30 | 45° | Φ460 | 2400*1550*1680 | 1470 | 2270 | 230 | 3.68 | |||
Q-B-J-1-275/4.43/0.05 | Φ58*1800 | 36 | 45° | Φ460 | 2850*1550*1680 | 1470 | 2720 | 275 | 4.43 |
Tri-Fire Pioneer Solar Water Heater
