Product Presentation

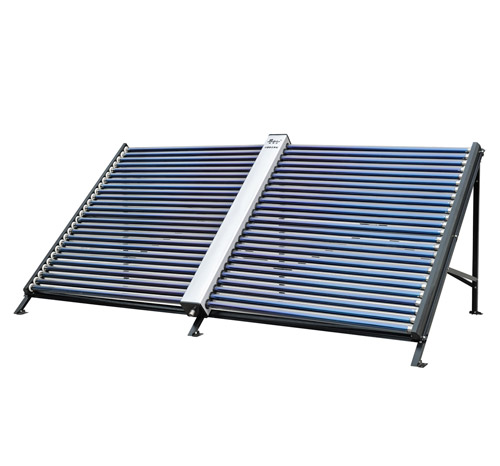

orizontal non pressurized solar collector

High performance, easy installation, natural circulation to avoid maintaining, long service life, being changed according to user requirements

Product Introduction

orizontal non pressurized solar collector

It is easier to installation and stronger than vacuum tube collector, easy installation while less heat loss. This model of collector adopt widening design, faster to heat collect under the same capacity.

Technical parameter

Name	JDL-NPM20-58/1.8	JDL-NPM30-58/1.8	JDL-NPM40-58/1.8	JDL-NPM50-58/1.8	JDL-NPM60-58/1.8
Type	Direct flow vacuum tube collector
Gross area	3.04m²	4.46m²	5.9m²	7.3m²	8.75 m²
Absorber area	2.0m²	3.0m²	4.0m²	5.0m²	6.0m²
Weight	75kg	102kg	135kg	165kg	210kg
Connection	1"
Vacuum tube	58*1800 CU-SS-AL three layers
Glass	Bororsilicate 3.3
Max.Operating pressure	0.05bar
Test pressure	0.0625bar
Max.Temperature	100℃
Installation dimension	3800*800	3800*1175	3800*1550	3800*1925	3800*2300
