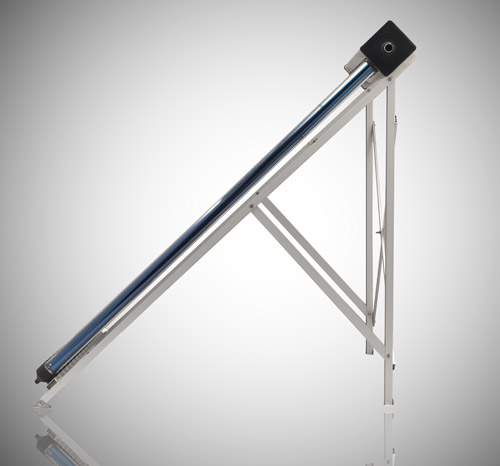

vertical non pressurized solar collector

High performance, easy installation, natural circulation to avoid maintaining, long service life, being changed according to user requirements

Product Introduction

vertical non pressurized solar collector

It is easier to installation and stronger than vacuum tube collector, easy installation while less heat loss. This model of collector adopt widening design, faster to heat collect under the same capacity.

Technical parameter

Name	JDL-NPM10-58/1.8	JDL-NPM15-58/1.8	JDL-NPM20-58/1.8	JDL-NPM25-58/1.8	JDL-NPM30-58/1.8
Type	Direct flow vacuum tube collector
Gross area	1.58 m²	2.31m²	3.05m²	3.79m²	4.53 m²
Absorber area	1.0m²	1.5m²	2.0m²	2.5m²	3.0m²
Weight	39kg	53kg	69kg	83kg	109kg

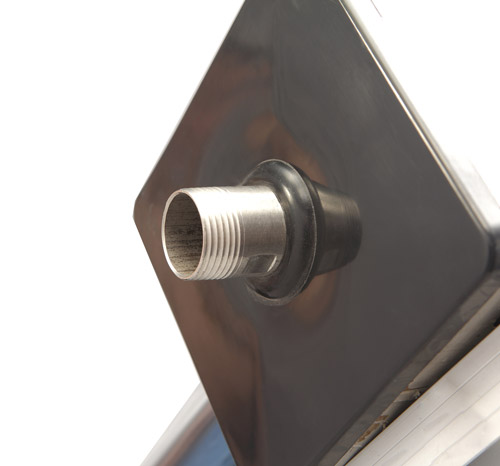

Connection	1"
Vacuum tube	58*1800 CU-SS-AL three layers
Glass	Bororsilicate 3.3
Max.Operating pressure	0.05bar
Test pressure	0.0625bar
Max.Temperature	100℃
Installation dimension	2000*800	2000*1175	2000*1550	2000*1925	2000*2300
