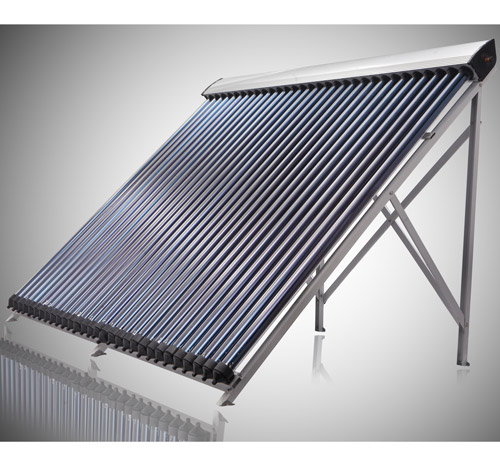

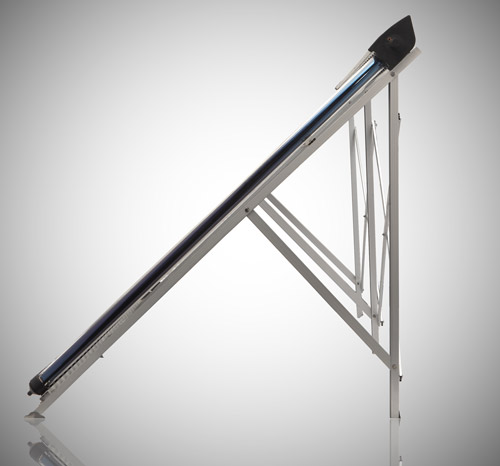

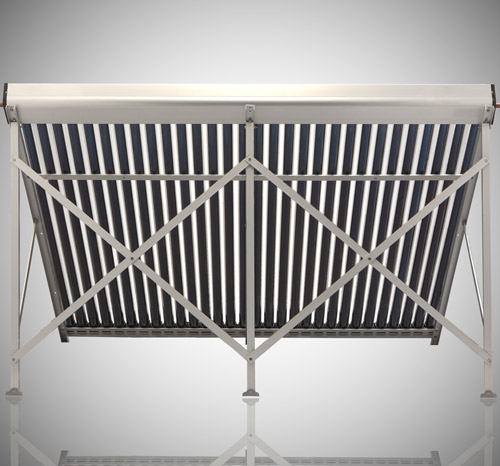

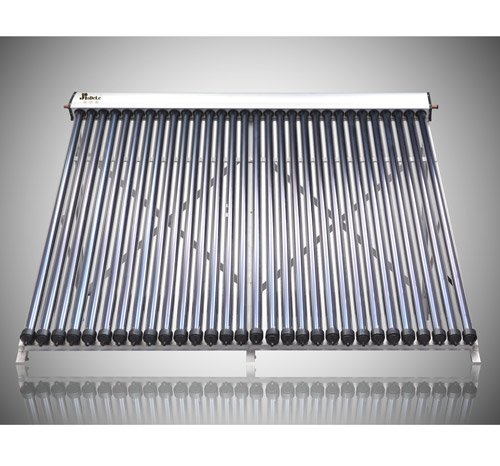

Split Pressurized Solar Water Heater

Efficient,long lifespan, pressurizing, low maintenance cost

Product Introduction

Split Pressurized Solar Water Heater

The design can compose different sizes of collector exhibit.No water inside the tubes when it works so that it won't be affected by scaling, silting or freezing. It's convenient and efficient for installation, troubleshooting and overhaul. The design makes the system workable even though one tube breaks.Highly cost effective..

Technical parameter

Name	JDL-PM10-58/1.8	JDL-PM15-58/1.8	JDL-PM20-58/1.8	JDL-PM25-58/1.8	JDL-PM30-58/1.8
Type	Direct flow vacuum tube collector
Gross area	1.58 m²	2.31m²	3.05m²	3.79m²	4.53 m²
Absorber area	1.0m²	1.5m²	2.0m²	2.5m²	3.0m²
Weight	39kg	53kg	69kg	83kg	109kg
Connection	3/4” (outer thread)
Vacuum tube	CU-SS-AL three layers
Glass	Bororsilicate 3.3
Max.Operating pressure	6bar
Test pressure	9bar
Max.Temperature	100℃
Stagnation Temperature	197.8℃
Conversion factorη0	75.2%
Heat transfer coefficient a1	2.949W/ m²·k
Heat transfer coefficient a2	0.013 W/ m²·k
Power output per collector unit at irradiation 1000W/m²	752W	1128W	1504W	1880W	2256W
