high efficiency, easy maintenance, can be installed in any degree
Product Introduction

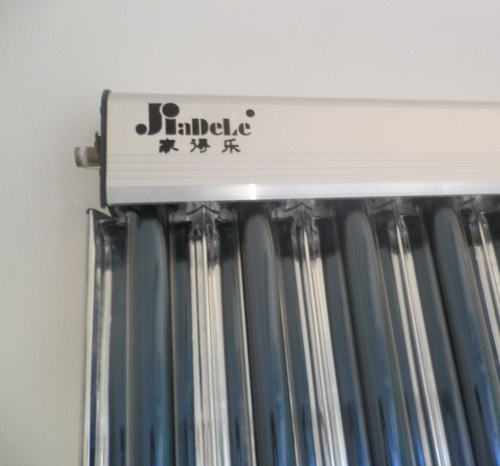

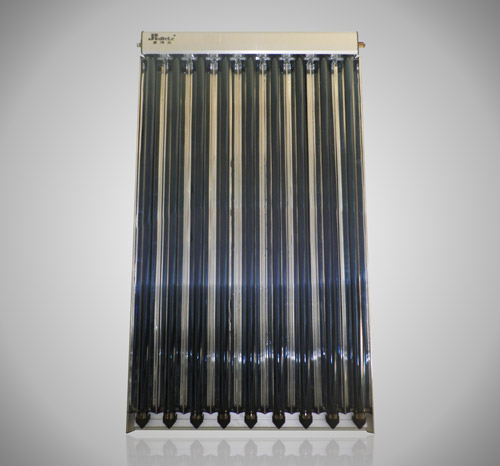

pressurized solar collector ( with cpc reflector)

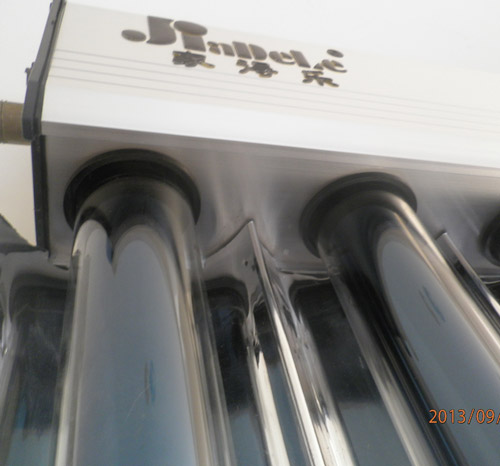

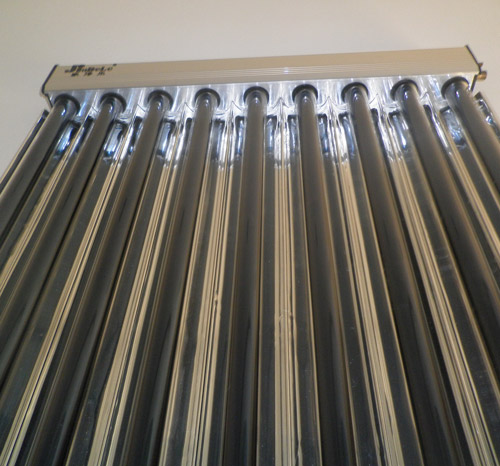

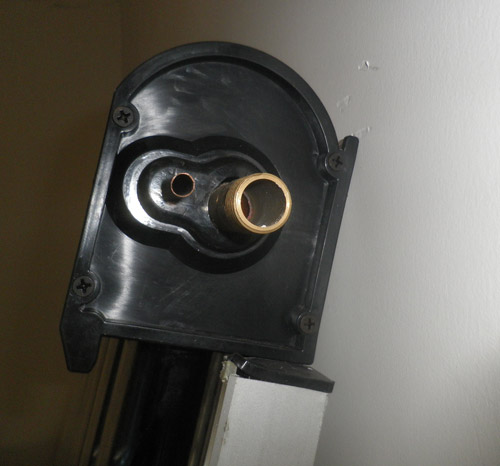

The vacuum tube use "U-aluminum fin" structure, the whole system fully enclosed operated with high pressure.the reflector use porcelain mirror principle of compound parabolic cylindrical. CPC reflector implements the 360 degrees of daylighting, can launch different wavelength of light, greatly improving the collection efficiency, can realize in high temperature applications.The whole system adopts steel ductile connection, a new integration technology, without the silicone seal of aging and leakage.No water running in the tube, not fouling, anti-freezing and frost resistance, if some of the vacuum tube is broken, the system operation as usually.
Technical parameter
Name | JDL-9-CPC |
Type | Direct flow vacuum tube collector |
Gross area | 1.872 m² |
Absorber area | 1.647 m² |
Weight | 30kg |
Connection | 3/4” (outer thread) |
Vacuum tube | 58*1800 CU-SS-AL three layers |
Glass | Bororsilicate 3.3 |
Absorption rate | 94% |
Emissivity | 6% |
Max. Operating pressure | 6bar |
Test pressure | 10bar |
Max. Temperature | 100℃ |
Stagnation Temperature | 262℃ |
Conversion factorη0 | 61.60% |
Heat transfer coefficient a1 | 1.466W/ m²·k |
Heat transfer coefficient a2 | 0.003 W/ m²·k |
Power output per collector unit at irradiation 1000W/m2 | 1015W |
